BYD Super DM Hybrid Technology

BYD Super DM (Dual Mode) Technology represents a significant leap forward in intelligent plug-in hybrid (PHEV) technology. Exclusively developed by BYD, it delivers numerous advantages, including improved energy efficiency, reduced fuel consumption, enhanced driving performance, and exceptional comfort.

How is BYD Super DM different?

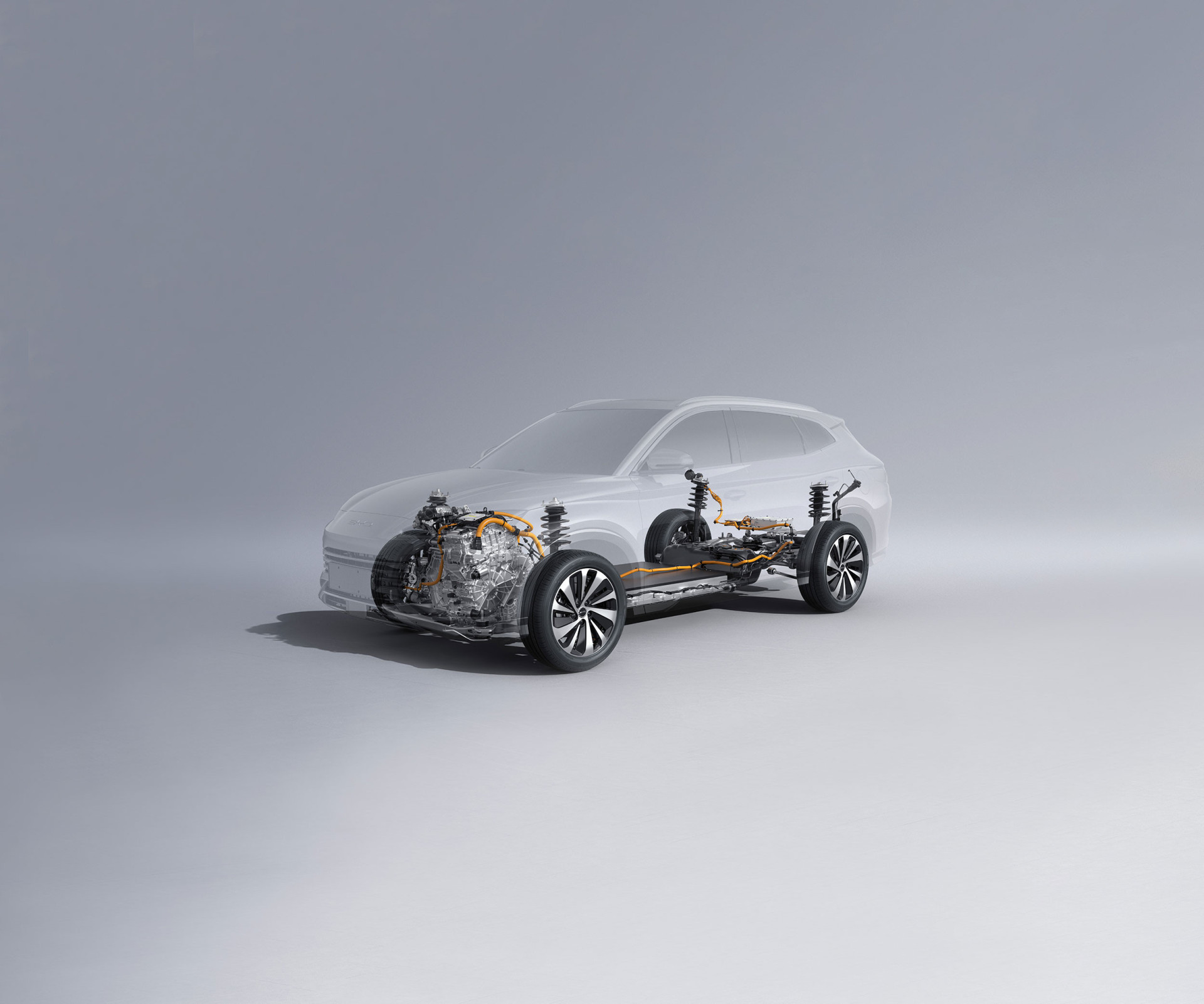

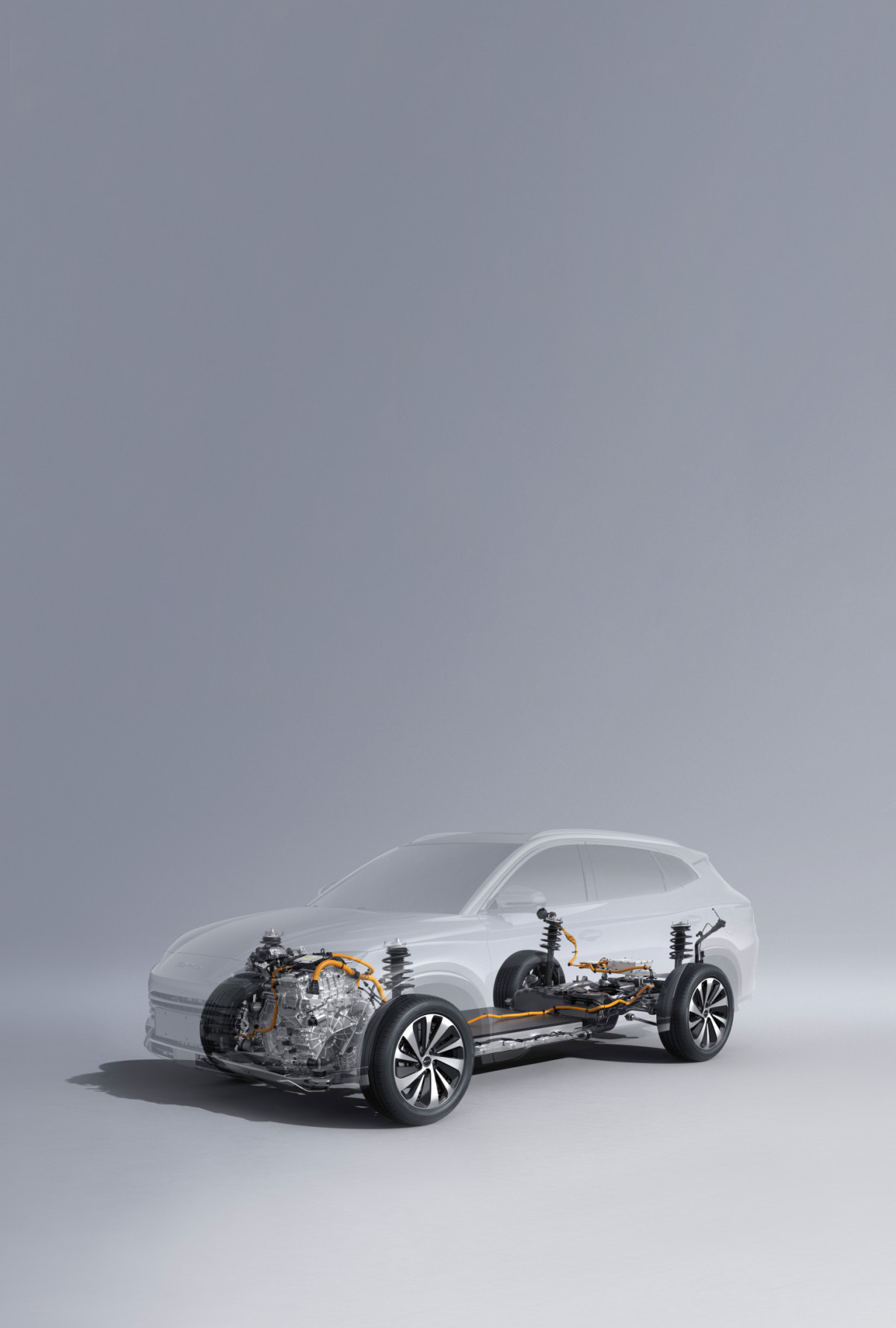

BYD Super DM Technology stands out from other PHEV systems with its electric-focused hybrid architecture. At its heart, this design relies primarily on a high-power motor and a large-capacity battery, using the engine only as supplementary support. This innovative system prioritises efficiency and effortlessly adapts to a range of driving conditions.

What are the benefits?

When fully charged, the vehicle runs entirely on electric power. As the charge depletes, it seamlessly transitions to an ultra-low fuel consumption hybrid mode, prioritising electric energy while minimising fuel use. This approach not only improves environmental sustainability but also enhances energy efficiency, reducing fuel consumption. It guarantees a quiet, comfortable ride while maintaining high power performance and responsiveness.

The three core components of Super DM Technology

BYD Super DM technology is made up of three core components:

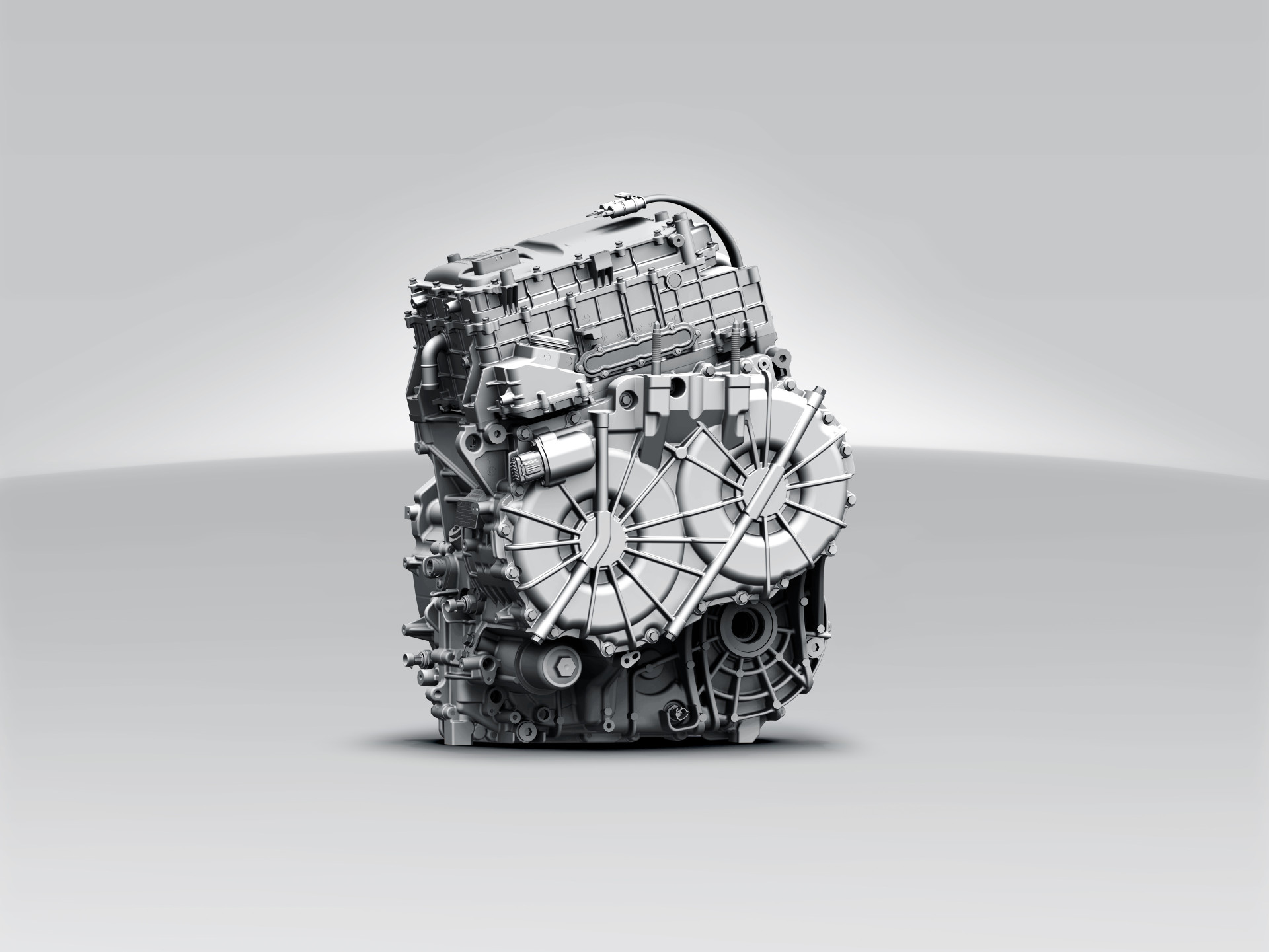

Electric Hybrid System (EHS)

The Electric Hybrid System (EHS) boasts a highly integrated powertrain, featuring high-speed dual motors, dual controllers, and advanced oil-cooling technology, all designed to optimise motor power density and efficiency.

PEAK POWER:
145 kW / 150 kW

PEAK TORQUE:
300Nm

High-Speed Dual Motors
The EHS is fitted with robust high-speed dual motors, capable of reaching up to 15,000 rpm. The P1 motor generates power, while the P3 motor drives the wheels, ensuring outstanding performance across a variety of driving conditions.

Hairpin Motor Technology
Utilising advanced hairpin technology, the EHS significantly enhances heat dissipation, achieving peak efficiency of up to 97% and maintaining stability above 90% in most operating conditions.

Oil Cooling Technology
The system incorporates oil cooling technology that directly targets heat sources, improving dissipation efficiency and increasing motor power density to a maximum of 5.5 kW/kg.

Highly Integrated Dual-Motor Controller
The IGBT technology boosts overall electronic control efficiency, achieving an impressive 98.9% efficiency rate.

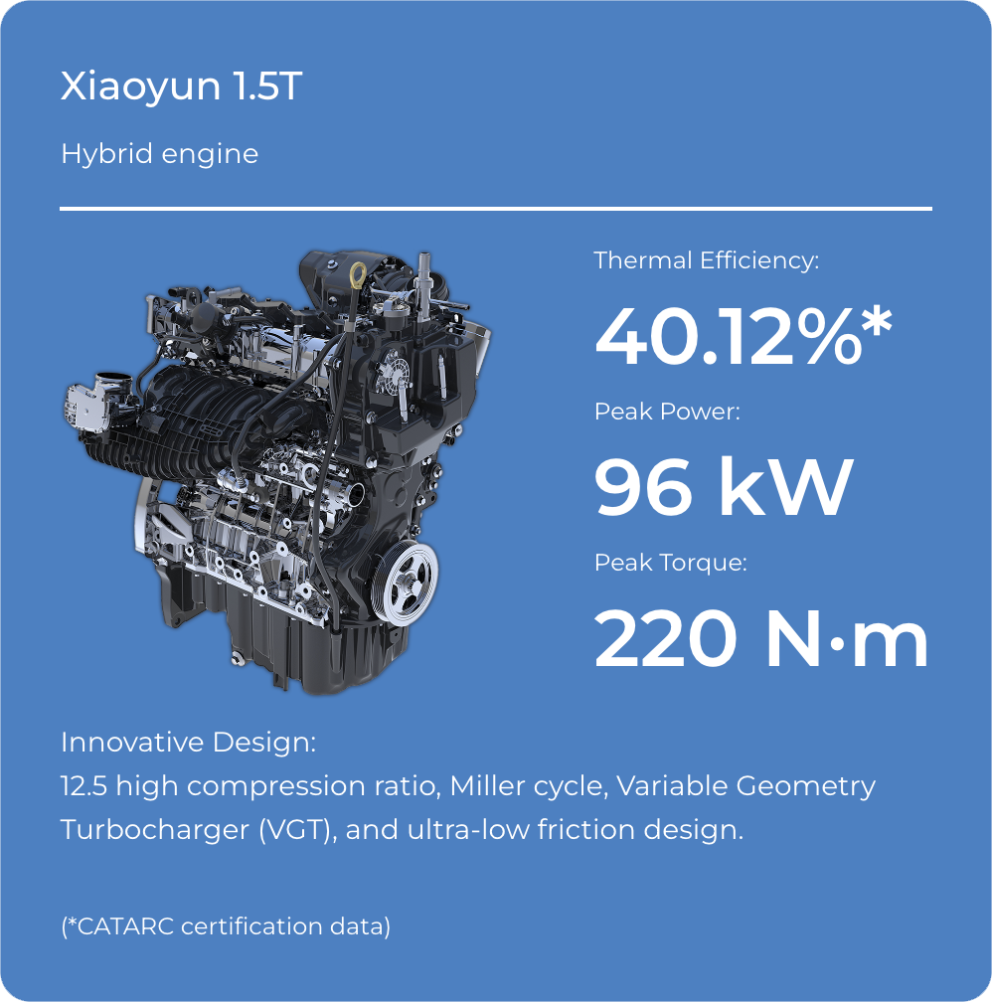

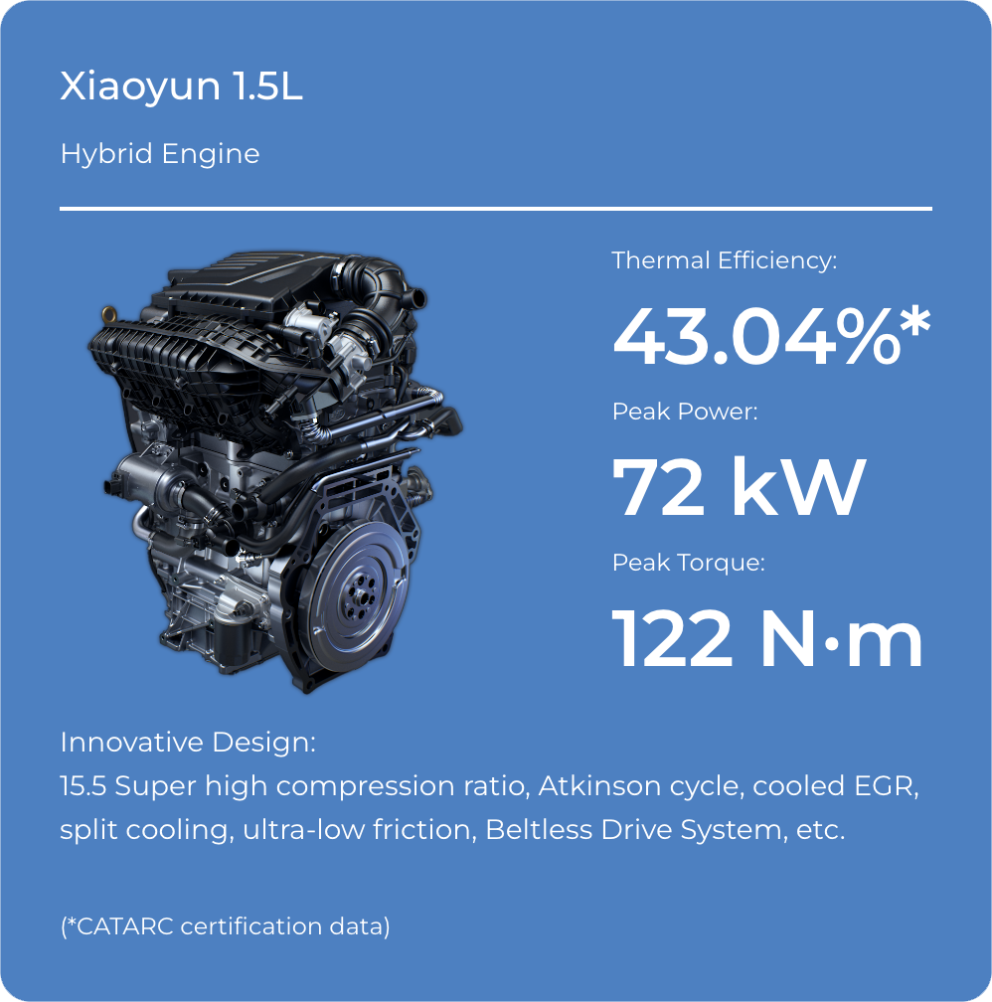

Xiaoyun 1.5L/1.5T Hybrid engine

The Xioayun engine features an innovative design specifically crafted for Super DM Technology. Its exceptional thermal efficiency, combined with a compact and streamlined structure, enhances power output, delivering remarkable peak power and torque.
Graphic showing the individual blades of the BYD Blade Battery

A large capacity Blade Battery

BYD Super DM Technology incorporates a customised version of the renowned Blade Battery. These specialised Blade Batteries, designed for the hybrid platform, start at 18.3 kWh, offering a pure electric range of up to 43 miles. Key benefits include:

Enhanced Safety
The Blade Battery has passed the rigorous Nail Penetration Test without igniting or emitting smoke, ensuring top-tier safety.

Optimised Strength
Each cell is arranged in a single pack that acts as a structural beam to resist force. The aluminium honeycomb-like structure is reinforced with high-strength panels on both the top and bottom, enhancing vertical rigidity.

Extended Range
By optimising space utilisation by 50% compared to traditional battery packs, the Blade Battery increases energy density and extends the vehicle's range.

Longevity
Built for durability, the Blade Battery has a lifespan of over 5,000 charge and discharge cycles.

Additional Technology

Three Power Supply Modes

Powered by the electric motor in 90% of driving conditions.

A Superb All-Round Experience

BYD Super DM Technology revolutionises eco-friendly travel by blending exceptional energy efficiency and fuel economy with rapid, responsive acceleration and a smooth, quiet driving experience.

Economical: Energy Efficient, Low Fuel Consumption

BYD Super DM Technology is engineered to offer exceptional energy efficiency and reduced fuel consumption, making it the ideal low-carbon choice for eco-conscious drivers. The specialised Xiaoyun 1.5L hybrid engine boasts an industry-leading thermal efficiency of 43.04%*, with a high-efficiency zone that can reach up to 80%. This advanced technology delivers impressive fuel consumption as low as 6 litres per 62 miles. Coupled with a powerful electric motor with a remarkable 97% efficiency, it provides a pure electric driving range of up to 43 miles. The combined system ensures a reassuring total range of over 621 miles in various conditions. (*CATARC certification data)

Fast: Exhilarating, Responsive and Dynamic

BYD Super DM Technology seamlessly blends power and efficiency to enhance every journey. With a total system output of up to 238 kW, it delivers a dynamic driving experience with impressive performance, rapid acceleration, and agile responsiveness. The 0-100 km/h acceleration rivals that of a 2.0T engine, while the electric motor offers an exceptional response time of just 10 milliseconds, ensuring unparalleled precision in driving dynamics.

Quiet: Bringing Serenity to Journeys

The electric-centric architecture of BYD Super DM Technology guarantees a quiet, serene driving experience, transforming the cabin into a peaceful sanctuary. Noise levels are significantly reduced as the vehicle glides smoothly, whether navigating city streets or cruising on the highway. This seamless blend of power, efficiency, and superior noise, vibration, and harshness (NVH) management ensures exceptional comfort throughout your journey.

Smooth: Exceptional Ride Comfort

BYD Super DM Technology provides an incredibly smooth ride, akin to that of a fully electric vehicle. The Electric Hybrid System is designed with simplicity in mind, offering seamless gear shifts that enhance driving ease and ensure a high level of comfort throughout your journey.
